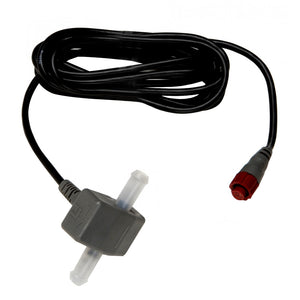

Fuel Flow Sensor with 10′ cable & T-connector
Fuel Flow Sensor Gasoline ONLY. 1 required per engine. Up to 3 engines supported.
Outputs:
- Fuel Flow
- Tank Fuel Used
- Trip Fuel Used
- Seasonal Fuel Used
Cable Length:10′
Fuel Line Diameter:3/8″ (9.5mm) Inside Diameter
Flow Rate Measured:Optimized for 0.6-45 Gal/hr but can measure outside these values
Added Back Pressure to the fuel system:0.5 PSI at 20 Gal/hr; 1 PSI at 40 Gal/hr
Installation Location:Above the max level of the fuel tank, in-line after the fuel filter and any Y’s or T’s in the line
Package:The Fuel Flow Sensor, N2K T and 2 (two) 1″ hose clamps
Fuel Type:Gasoline only. The Fuel Flow Sensor does not operate diesel engine fuel systems
Hole required to route through a bulkhead:22mm (7/8″)
Multiple Fule Flow sensors possible:Yes
